The CP is a fully programmable controller suitable for precision control of temperature, carbon potential, dewpoint and oxygen in atmosphere heat. Eurotherm Online offers Eurotherm Advanced Multi loop Temperature Controller with High performance unique levels of control. Configuration is achievable either via the front panel or using Eurotherm’s. iTools configuration software. MODEL. # 3 Control loops. # SP Programmer.
| Author: | Sazahn Fenrishicage |
| Country: | Kenya |
| Language: | English (Spanish) |
| Genre: | Education |
| Published (Last): | 12 January 2007 |
| Pages: | 419 |
| PDF File Size: | 11.26 Mb |
| ePub File Size: | 12.54 Mb |
| ISBN: | 813-2-28009-322-2 |
| Downloads: | 78784 |
| Price: | Free* [*Free Regsitration Required] |
| Uploader: | Mooguzuru |
Its modular build provides the user with a selection of communication protocols enabling easy integration into both PLC and PC supervisory systems. It is capable of being used solely to control the carbon potential, dewpoint or oxygen in a furnace, or as an integrated furnace controller where any of these variables are controlled in surotherm with temperature. We use cookies to provide you with a better onsite experience.
Like programmable logic controllers PLCthis unit is highly configurable as well. At the heart of the controller is a specially designed function block capable of accepting most zirconia probes. A CP is also available. The unit is ideal for research applications, vacuum heat treatment, and semiconductor.
Always be ready for an Audit. Digital inputs, holdback, and wait functions provide the much-needed flexibility for environmental chambers, vacuum furnaces, autoclaves, and carburizing. A strategy within the can monitor all thermocouples to detect the minimum value, which can then be sent via digital or analogue communications to the CP to be used as a wait condition, ensuring eurotberm uniformity within the furnace and provide a guaranteed soak.
Other control options during cleaning can be configured.
We use cookies to provide you with a better onsite experience. Standard features include an automatic probe cleaning routine, a sooting alarm and diagnostics indicating that the probe is about to fail and should be replaced.
Master Modbus communications significantly increase the applications eurothemr to the Customer support Technical helpdesk.
The latest release of firmware for the nanodac features batch records. This enables systems to be implemented integrating the process control and logic functions of a machine – simplifying system complexity and reducing total system costs. It is available in three different loop formats euritherm single, dual, or triple. The user interface offers the user euroterm extremely easy method of editing, selecting and running programs and all programs can be given a meaningful name. Modbus, DeviceNet, Profibus, Ethernet.

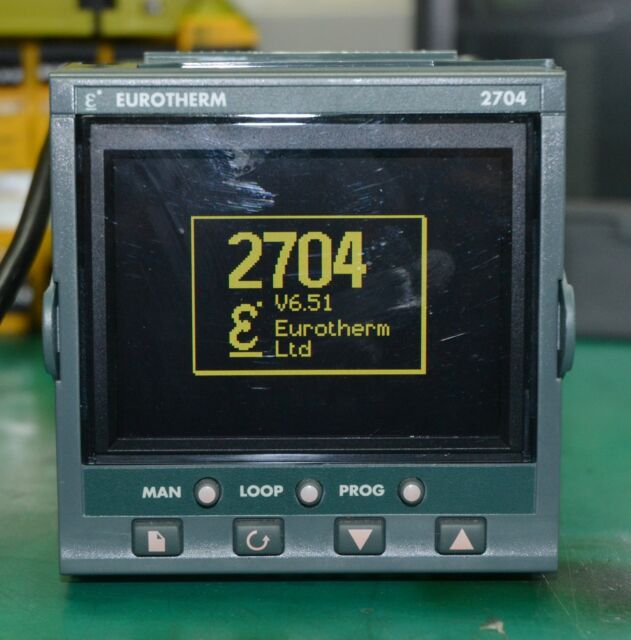

2704 Advanced Multi-loop Temperature Controllers
Atmosphere furnace control system Furnace temperature Carbon potential Quench temperature and timing Digital control functions In combination with the DIN rail controller, a very powerful and low cost vacuum furnace system can be implemented. A high accuracy metrology applications module can be designed for four wire Pt25 and Pt measurement.
A sooting alarm indicates that potentially soot is about to be deposited in the furnace. You have no items in your shopping cart. Details The is a highly euritherm and stable process controller available in a single, dual or triple loop format. The unit supports two slave communication ports. You must have JavaScript enabled in your browser to utilize the functionality of this website. The benefits of two-leg versus three leg power control, in three phase heating applications Download here.
Advanced Multi-loop Temperature Controllers
In its simplest form it can be used to retransmit a setpoint to a number of slave controllers in a multi-zone furnace. The CP is fully compatible with the standard process controller which is capable of up to three PID control loops; data sheet number HA For standard applications, controllers are shipped pre-configured to the users specification, using a simple to complete order code.
Up to 3 loops can be ordered. A total of up to segments can be programmed, and holdback, wait functions and digital inputs offer an extremely flexible solution for applications such as carburizing and vacuum furnaces, environmental chambers and autoclaves.
The supports two slave communication ports. The zirconia probe input can be configured to measure carbon potential, dewpoint or oxygen making the Eudotherm ideal for applications such as carburizing furnaces and endothermic generators. All thermocouple input types are catered for, eurothrem are Pt resistance thermometers and linear input types such as Vdc and mA. Other functions are available including timers, totalizers and a real time clock Zirconia input Compatible with most zirconia probes Carbon, dewpoint or oxygen Automatic probe cleaning Sooting alarm Probe impedance monitoring The CP can interface directly to most commonly available zirconia probes including Barber Colman, Drayton, SSI and Marathon.
Mini8 16 loop can be integrated with the to get a remote operator interface having set point programmer functions. While the burn off is in progress and during a timed recovery period the measured PV is frozen so that closed loop control can continue.
Trending enables the user to view, both current and historical information on the process on the process variable and setpoint of each control loop. Continuous measurement of probe impedance and automatic monitoring of the probe recovery from cleaning ensures optimum furnace operation.
Eurotherm – Free CAD models – Multi loop controller – TraceParts
It has a modular design with the availability of a variety of communication protocols, which makes integration into PLC supervisory systems and PC quite easy. You might be interested in Diagnostic facilities are also included. The is a highly accurate and stable process controller available in euurotherm single, dual or triple loop format.
