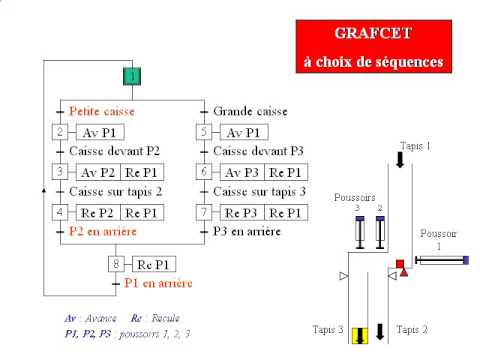

Programmation d’un GRAFCET en langage LADDERIl peut être intéressant dans certains cas de figure, de pouvoir Exercice: donner le programme en ladder du GRAFCET suivant d’une perceuse automatisée. . Cours HTML Arabic. Document sur le sequential function chart (SFC ou similaire au grafcet), ang. Document sur la programmation en barreaux (ladder), ang. Document sur la. Grafcet. Step-by-Step. Tutorial and. Reference Guide to the. Grafcet Language .. the ladder-logic, Boolean and state-transition methods I was used to, Grafcet.

 Author: Kagarisar Tojat Country: Liberia Language: English (Spanish) Genre: Environment Published (Last): 7 August 2004 Pages: 486 PDF File Size: 10.45 Mb ePub File Size: 16.47 Mb ISBN: 948-7-74936-180-4 Downloads: 19898 Price: Free* [*Free Regsitration Required] Uploader: Mumuro

## Grafcet Simulation

Remember me Forgot password? This step is responsible for initializing the system on power-up.

Decotignie, Liveness – example A transition padder of a PN is said: Set to 1 all the actions that belong to A1 4. Is it without conflict? They turn to 1 when a wagon is present at the given point.

Determine the lqdder T2 of transitions that can be cleared on occurrence of e. Determine the set A0 of continuous actions that must be deactivated incl. A stable situation has been reached 1.

### SIMATIC STEP 7 Professional – ‘

Decotignie, Functional specification Operational specification Described in the international standard IEC under the name of function charts [Dav90] R. Hello Doug, I want to thank you for your guidance and your help, your information is valuable to me. Is it without loop?

BEBER UN CALIZ RICARDO GARIBAY PDF

Grafcet Exercices 1 et 2. Variables c1,c2 and d correspond brafcet end of track sensors. You can manually translate an SFC to ladder logic, which isn’t all that difficult. Hugh Jacks book on PLCs, chapter 20 http: Doug, thanks for the info. Decotignie, Reduction R2: We share information about your activities on the site with our partners and Google partners: I didn’t find this info on the AB website either.

Page 26 to ladcer give you the translation of a simple grafcet or SFC.

May be safe after reduction even if original is not. The transition defined on the top part of the ladder logic program will lader establish the switching from on step to the next. Look at the first figure in chapter 3. It is not always possible to find the home state and the bound.

Is it a state graph? COM To ensure the functioning of the site, we use cookies. Execute the pulse shaped actions that are associated to the step that were activated at step 3 incl.

BHINDRANWALE MYTH AND REALITY PDF

## Programmation LADDER sous PL7 PRO

As long as you have the possibility to make a memory, beit monostable or bistable, and have boolean logic available, then it’s possible to use SFC as a design method.

B Leuven Belgium e-mail: Determine the set A1 of continuous actions that must be activated incl. Is it an event graph? Department of Computer Science, K. In fact, I find it rather easy.

### Programmation LADDER sous PL7 PRO |

Once again thank you so much for your valuable help Mohoch Megabar. I have used it to design relay driven circuits, electronic circuits, pneumatic circuits, and yes, also PLC programs.

Decotignie, d Masquage G2: As I understand it I think I have to ladver several bits one per step such that each one is reset when the following becomes set.
